HUAWEI MC509-A MINI PCIE Hua Wei EVDO CDMA2000 Wireless moudle replace EM660 100% New&Original card Support GPS Voice Message
Product Description:

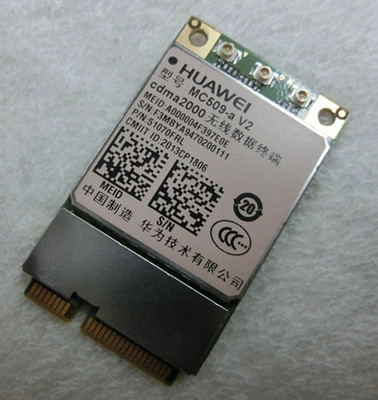

HUA WEI MC509-A Series CDMA Mini PCIe Module
Feature :
Description Physical
Dimensions (L × W × H): 50.95 mm × 30.4 mm × 3.57 mm
Weight: about 12 g
Operating Temperature –20°C to +60°C
Storage Temperature –40°C to +85°C
Power Voltage
DC 3.0 V–3.6 V (typical value is 3.3 V)
Application Interface(52-pin Mini PCIe interface One standard Removable User Identity Module (RUIM) card (3 V or 1.8 V)
Audio interface: PCM interface
USB 2.0 (Full Speed)
RESIN_N: Reset module
WAKE#: Wake up signal
W_DISABLE# Signal
LED_WWAN#: Active-low LED signal indicating the state of the module
|
